Sleipner A: $700 Million Offshore Platform Sinks During Ballast Test Due to FEA Software Error
What happened
On 23 August 1991, the Sleipner A concrete gravity base structure — a Norwegian North Sea oil platform under construction — sank in the Gandsfjord during a routine ballast test, killing one worker and resulting in a total loss of approximately $700 million. The platform's concrete cell wall cracked under pressure and flooded. The root cause was a finite element analysis error in the structural design software: the mesh was too coarse at the critical tricell junction zones, causing the software to underestimate shear stresses by approximately 47%. The sinking triggered a seismic event registering 3.0 on the Richter scale.[1]
What went wrong

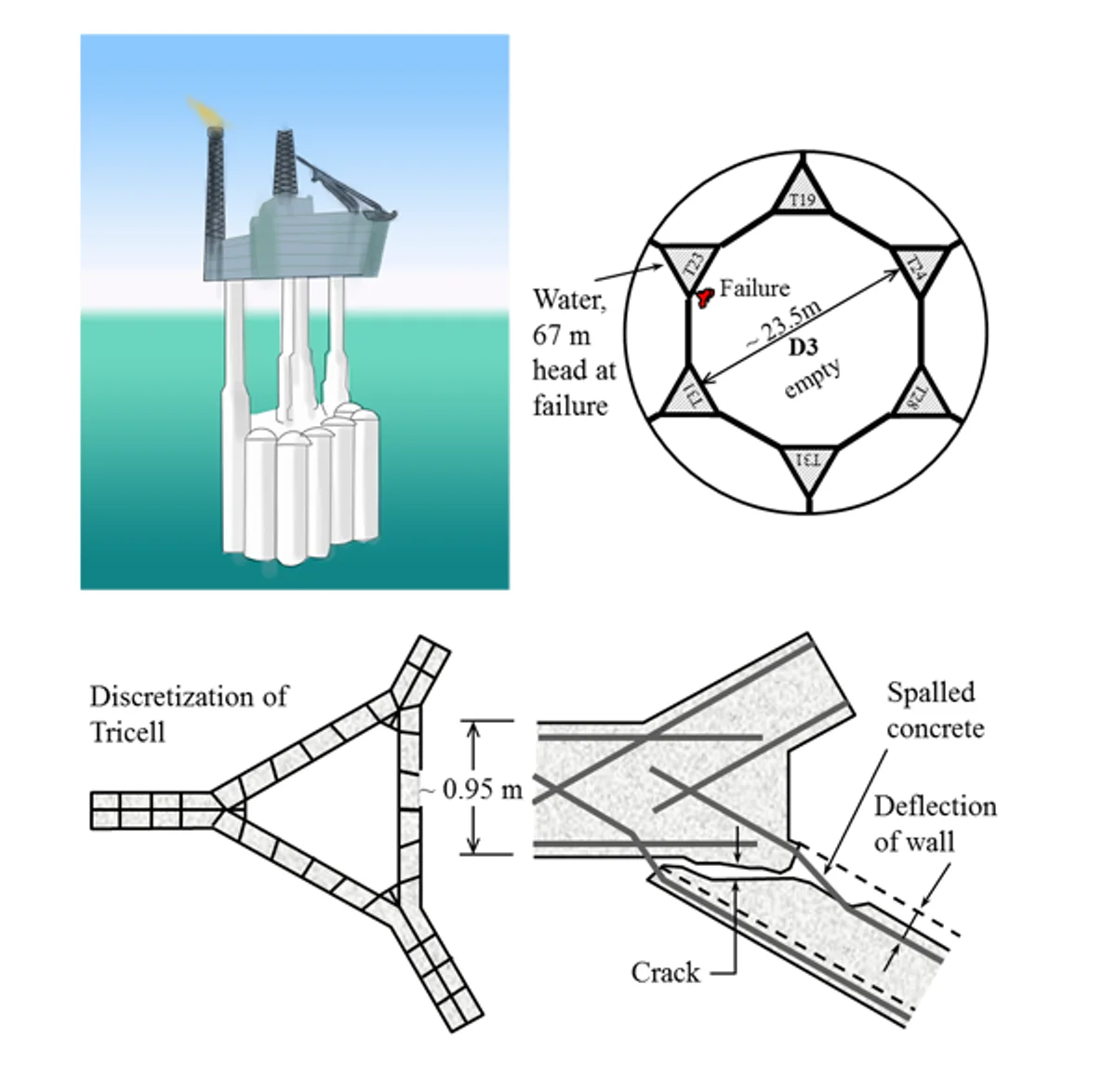

The FEA model used to design the platform's reinforced concrete substructure had an insufficiently fine mesh in the tricell zones — the junction points where multiple hollow concrete cells met. At these stress concentrations, the coarse mesh produced shear stress values roughly 47% lower than the actual loads. The design team accepted the FEA output without independent hand-calculation verification at the critical nodes. Standard engineering practice for safety-critical structures requires analytical cross-checks wherever numerical methods are used, but this was not enforced. The flaw went undetected through the entire design, construction, and testing process.[1]
Lesson learned
Finite element analysis is a numerical approximation whose accuracy depends entirely on mesh quality at stress concentrations. FEA output for safety-critical structures must always be cross-validated at critical nodes using classical analytical methods. The Sleipner A failure prompted sweeping revisions to FEA validation requirements for offshore concrete structures across the entire industry. Software output is only as reliable as the model that produced it.
Sources
- [1]
