Hagia Sophia: Justinian Declared "I Have Surpassed Solomon" — Twenty Years Later the Dome Collapsed
What happened

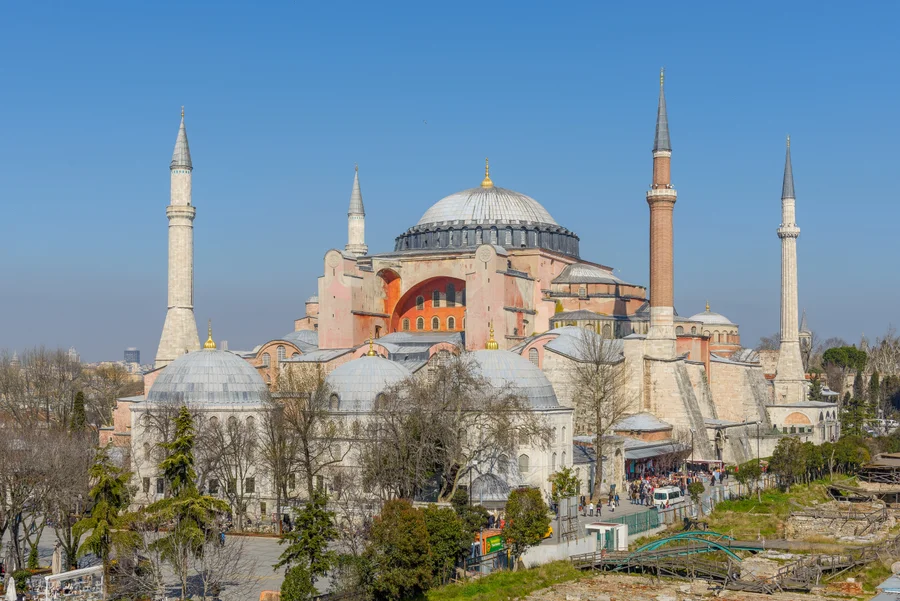

In 537 AD, Emperor Justinian I completed the Hagia Sophia in Constantinople in just five years — the largest domed structure in the world, built by the mathematician-architects Anthemius of Tralles and Isidorus of Miletus. At the inauguration, Justinian reportedly declared "Solomon, I have surpassed thee." The dome was an extraordinary structural invention: a shallow circular dome 31 metres across, resting not on a thick continuous wall but on four piers connected by arches and pendentives. Its shallowness was also its flaw — a shallow dome generates far more lateral thrust than a taller one. The supporting piers were cracking before construction was finished. Two major earthquakes in 553–554 AD damaged the eastern arch. On 7 May 558 AD, the eastern portion of the dome collapsed, crushing the altar. Rebuilt by Isidorus the Younger — nephew of one of the original architects — with the dome raised by approximately six metres to reduce thrust, the corrected structure has stood for nearly fifteen centuries.[1]
What went wrong

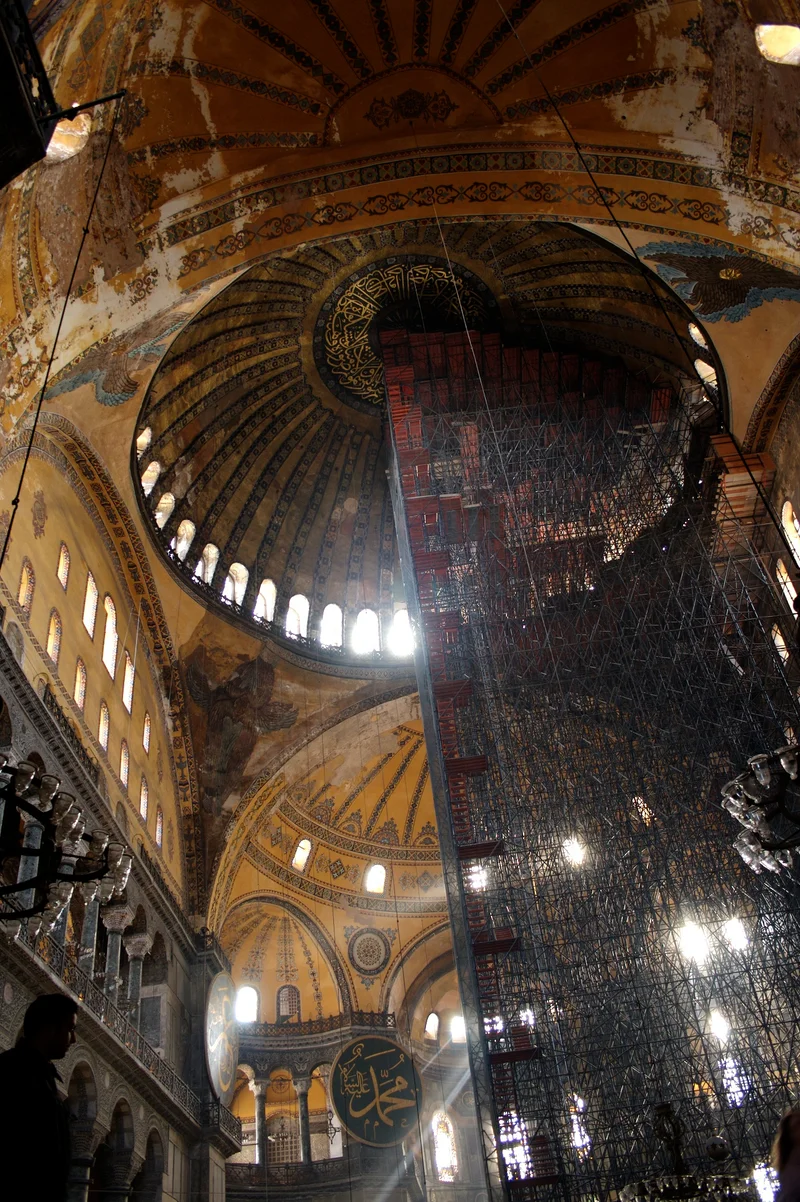

The Hagia Sophia was designed to be structurally unprecedented, and it was. Anthemius of Tralles was primarily a mathematician and geometer rather than a traditional builder; his collaborator Isidorus of Miletus was similarly a theorist. Together they designed a dome that had never been attempted at this scale: 31 metres in diameter, resting on four piers through arches and pendentives rather than on the thick continuous circular wall that the Pantheon required. The pendentive — the curved triangular section that transitions from a square pier arrangement to a circular dome base — was not new in 532, but deploying it to carry a dome of this size was. The critical error was the dome's shallowness. A shallow dome — one with a low rise-to-span ratio, where the dome's height is small relative to its diameter — generates substantially more horizontal (lateral) thrust than a taller, steeper dome. The Pantheon dome is nearly hemispherical, minimising lateral thrust. Anthemius and Isidorus made their dome unusually shallow to reduce the structure's overall height and create the visual effect of a dome floating above the nave on a ring of light. This was deliberate. It was also structurally dangerous. The lateral thrust from the shallow dome was transmitted through the arches and pendentives into the four main piers. Procopius, the contemporary historian and principal eyewitness, recorded that the piers were visibly deforming under load even before construction was complete. The builders reinforced them during the build, but 6th-century engineering had no mathematics to calculate whether the reinforcement was sufficient. They were operating without validated structural models at unprecedented scale. Two major earthquakes struck the region in 553 and 554 AD. The eastern arch — which carried one quarter of the dome's rim — was damaged. With the arch compromised, the dome's load could no longer be distributed evenly across all four supports. On 7 May 558 AD, the eastern portion of the dome and the eastern semidome collapsed into the nave, destroying the altar, the ciborium, and large sections of the interior. The failure was not sudden negligence; it was the accumulation of a flawed structural hypothesis tested to destruction.[1]
Lesson learned
The Hagia Sophia collapse and rebuild is one of the earliest documented case studies in engineering at the frontier of knowledge. Anthemius and Isidorus were not careless — they were working beyond what any analytical framework of the era could evaluate. The failure was the cost of pioneering at full scale with no smaller proof of concept, no validated load calculations, and no historical precedent to draw on. The fix applied by Isidorus the Younger was structurally rigorous: raise the dome by approximately six metres, steepening its profile and dramatically reducing the lateral thrust. A taller dome pushes outward less; the forces are redirected more vertically into the supporting piers rather than horizontally against them. This is the same principle — intuitively understood by the Pantheon's builders centuries earlier — that the original architects had sacrificed for visual effect. The rebuilt dome has survived thirty-two recorded earthquakes since 562 AD, including the catastrophic 1509 Marmara earthquake that levelled much of Constantinople. It remained the world's largest dome for nearly a thousand years, until the completion of the Florence Cathedral dome in 1436. The modern lessons are clear. At unprecedented scale, conservative structural assumptions are not timidity — they are the only rational response to unvalidated models. The original architects had the imagination to invent a new structural system; they lacked the empirical margin to know where it would fail. Their successors, having observed the failure, knew exactly what to change. The rebuilt dome is not just a repair; it is the correct solution that the first attempt was reaching for.
Procopius estimated the original construction cost at the equivalent of roughly three years of imperial revenue. Modern historians estimate the project cost approximately 145,000 kg of gold. No reliable cost figure for the 558–562 rebuild survives, though Justinian committed substantial imperial treasury resources to the reconstruction. No financial damage figure is calculable in modern terms with sufficient reliability.
